  • Special Transport Series
  • Special Transport Series

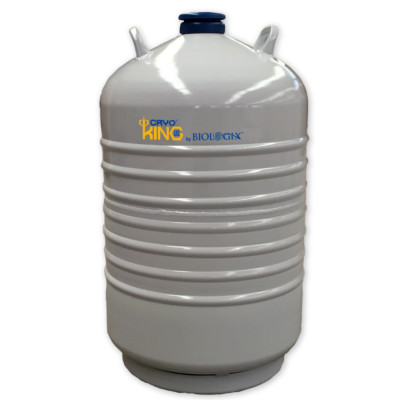

Special Transport Series
  • Brand:
    CryoKING
  • Model:
    CKST620Z/T050 CKST630Z/T050 CKST630Z/T080 CKST635Z/T050 CKST635Z/T080 CKST650Z/T050 CKST650Z/T080
  • Material:
    Durable aluminum alloy
Designed for efficient long-term storage of smaller capacities. Appropriate for long-term static preservation or transportation of biological samples. Made of high-strength light aluminum alloy.
Characteristic

1. High-strength aluminum alloy , light
2. Inner structure to ensure the tank safety in transportation
3. Numerical canisters for orientation
4. Large capacity for vials
5. Canes are available
6. Lockable-lid switch is optional
7. Liquid level monitoring system is optional
8. Carrying cart is optional
9. Liquid nitrogen pump is optional
10. CE certified
11. Vacuum warranty: 5 years

Ordering Information

Cat#

CKST620Z/T050

CKST630Z/T050

CKST630Z/T080

CKST635Z/T050

CKST635Z/T080

CKST650Z/T050

CKST650Z/T080

Unit Parameter

Geometric capacity (L)

20

31.5

31.5

35.5

35.5

50

50

Neck diameter(mm)

50

50

80

50

80

50

80

Static evaporation loss rate (L/Day)

0.20

0.20

0.30

0.20

0.30

0.23

0.34

Static holding time (Day)

101

159

106

179

119

213

147

Storage capacity

Canister outer diameter (mm)

38

38

63

38

63

38

63

Canister height(mm)

120/276

120/276

120/276

120/276

120/276

120/276

120/276

Canisters(ea)

6

6

6

6

6

6

6

Straw holding capacity (single layer)

792

792

2244

792

2244

792

2244

1788

1788

5022

1788

5022

1788

5022

Straw holding capacity (double layers)

1284

1284

3624

1284

3624

1284

3624

2832

2832

8460

2832

8460

2832

8460

Containers

Height(mm)

672

706

710

750

754

811

823

Outer diameter(mm)

394

462

462

462

462

462

462

Empty weight(kg)

10.1

13.3

13.4

14.4

14.8

15.4

15.7

Accessories included

Lockable lid

Protective holding

Optional accessories

Intelligent monitor

Carrying cart

——
