Filling Series
  • Brand:
    CryoKING
  • Model:
    CKD-Z005A040 CKD-Z015A040 CKD-Z030A040 CKD-Z050A040 CKD-Z100A040
  • Material:

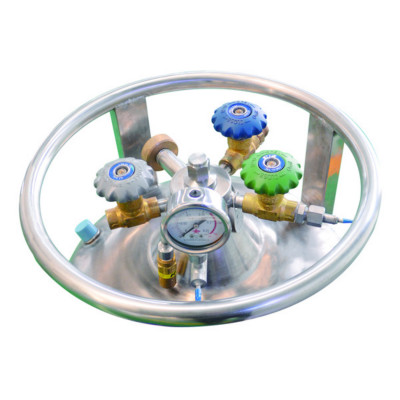

Automatically fill liquid for other containers. Designed with liquid valve, pressure building valve, pressure gauge, release valve, safety valve, and bursting disc and muffle (more than 200 L).
Characteristic

1. Special neck design and low evaporation rate
2. Stainless steel and superior structure
3. Easy-to-rotate turntable
4. Carrying cart is optional
5. CE certified
6. Vacuum warranty: 5 years
7. Remote transmission of signals
8. Low-temperature manostat and solenoid valve is optional
9. Automatic filling of liquid

Ordering Information

CAa#

CKD-Z005A040

CKD-Z015A040

CKD-Z030A040

CKD-Z050A040

CKD-Z100A040

Unit parameter

Liquid nitrogen Capacity (L)

5

15

30

50

100

Neck diameter (mm)

40

40

40

40

40

Static evaporation loss rate (L/Day)

3

2.5

2.5

2

1.3

Liquid velocity (L/min)

1

2

3

3

4

Filling tank

Height (mm)

510

750

879

991

1185

Outer diameter (mm)

329

404

454

506

606

Weight empty (kg)

15

23

32

54

75

Standard working pressure (Mpa)

0.05

Maximum working pressure (Mpa)

0.09

Setting pressure of the first safety valve
(Mpa)

0.099

Setting pressure of the second safety
valve (Mpa)

0.15

Pressure gauge indication range (Mpa)

0~0.25

Cat#

CKD-Z150A040

CKD-Z175A040

CKD-Z200A040

CKD-Z300A040

CKD-Z500A040

Properties

Liquid nitrogen Capacity (L)

150

175

200

300

500

Neck diameter (mm)

40

40

40

40

40

Static evaporation loss rate (L/Day)

1.3

1.3

1.2

1.1

1.1

Liquid velocity (L/min)

6

6

8

8

10

Filling tank

Height (mm)

1188

1298

1265

1459

1576

Outer diameter (mm)

706

706

758

857

1008

Weight empty (kg)

102

120

130

202

255

Standard working pressure (Mpa)

0.05

Maximum working pressure (Mpa)

0.09

Setting pressure of the first safety valve
(Mpa)

0.099

Setting pressure of the second safety
valve (Mpa)

0.15

Pressure gauge indication range (Mpa)

0~0.25

★ The above static evaporation loss and static holding time are all based on theoretical values. Actual results are influenced by the operation,
atmospheric conditions and manufacture tolerance
