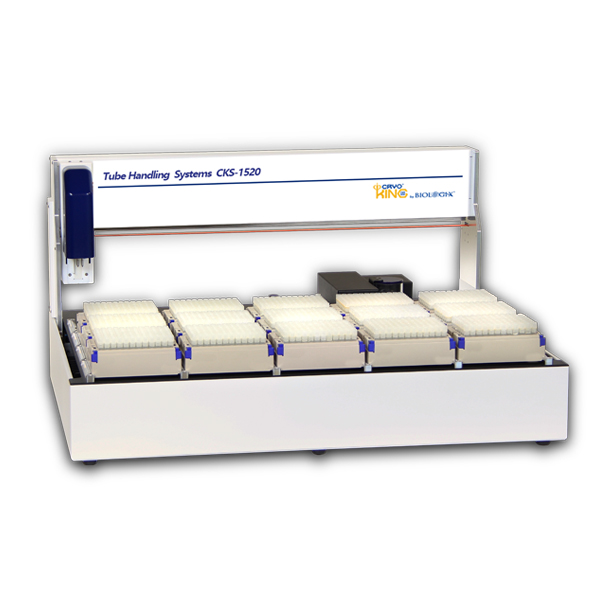

CryoKING Tube Handling System
  • Brand:
    CryoKING
  • Model:
    CKS-1520 CKS-152X
  • Material:
Re-array, reformat or cherry pick tubes; Weigh tubes• Detect volume with the LevelCheck; 2D Barcode decoding
Characteristic

Re-array, reformat or cherry pick tubes

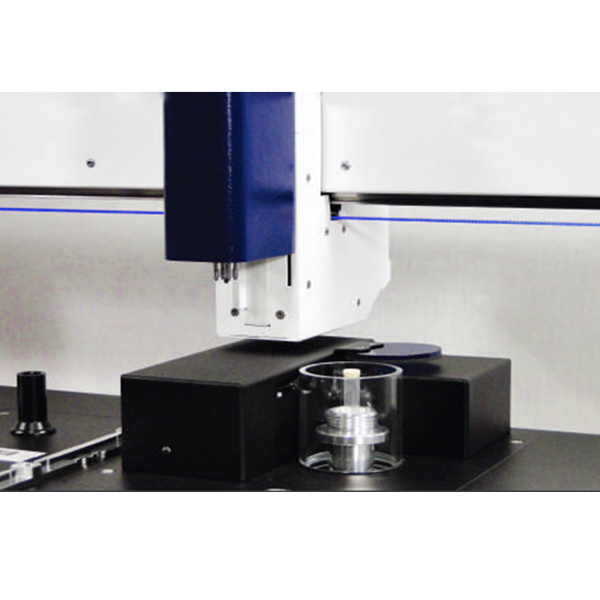

Weigh tubes (tare & gross weights)

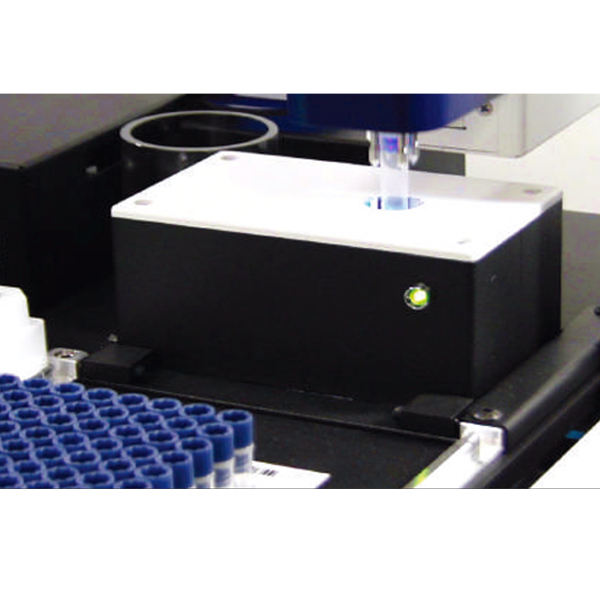

Detect volume with the LevelCheck

2D Barcode decoding

LIMS integration ready

Work list based operation

Efficient for both small and large projects

Label printer and applicator option

Designed for continuous use and unattended operation

Encoder based robotics and precision bearings provide the highest reliability

Integration software toolkits available


Ordering Information
Cat #

Capacity

ModulesDimensions (mm)Weigjt
CKS-152020 SBS RacksStandard: Re-array, reformat tubes; Decode 2D barcodes, weigh tubes28.5” W x 21” D x 16” H (72 x 53 x 40 cm)27 kg
CKS-152X20 SBS RacksOptional: Level check, DMSO hydration check, label, enclosureDepend on modulesDepend on modules

Electrical: 110-220 VAC 50/60Hz

Operating Environment: 10°C to 40°C, 10-90% RH [Standard]; -4°C to 40°C, 10-90% RH [Cold Room Model]

System Requirements: Windows 10, 8, 7 - 2 GB RAM Recommended - USB 2.0 ports
