Description
The DK-300X Stereo Microscope Fluorescence Adapter is a complete solution for adding fluorescence to existing stereo microscopes. It includes everything you need for adapting (not converting) just about any stereo microscope. It can also be used as an excitation light source separately, You can select multiple wavelenaths and observe the expression of various fluorescent proteins.
Application
Detection of green fluorescent protein (GFP) gene, red fluorescent protein (DsRed), gene plants, transgenic animals with GFP and DsRed genes, microorganisms transgenic with GFP and DsRed genes and tissue-specific expression of GFP and DsRed genes

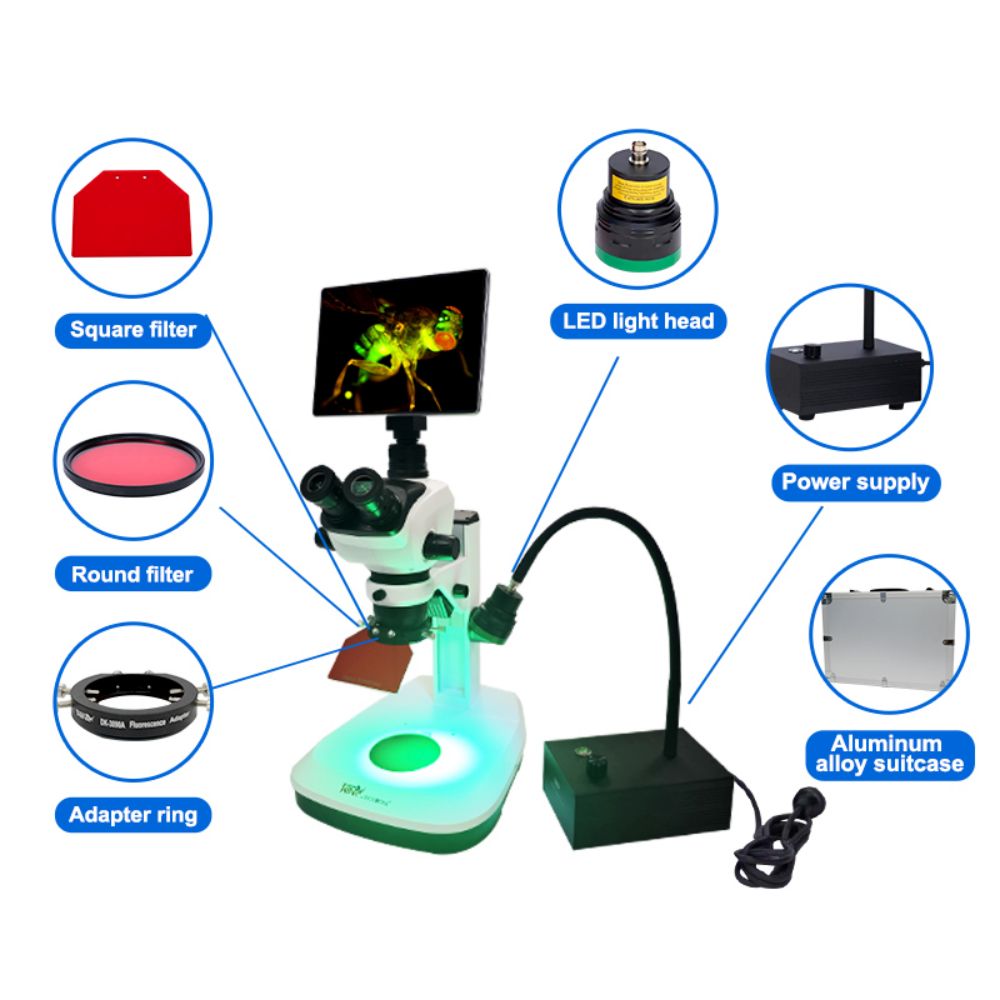

Standard configuration of host:
1 unit : Flexible gooseneck lamp base with control circuit (120-240VAC, 50/60Hz)
1 set of DK-3000 microscope adapters, including:
1 unit of p67mm microscope adapter ring, 1 unit of square filter shield, 1 unit of round filter, 1 copy of instruction manual, packed in an aluminum alloy suitcase, 1/Case
Model | Description | Excitation | Emission Filter | Application |
DK-300XUV | Full set-UV | 360-380nm | 415nm LP | DAPI, Hoechst |
DK-300XRB | Full set-Royal | 440-460nm | 500nm LP | GFP, FITC |
DK-300XGR | Full set-Green | 510-540nm | 600nm LP | DsRed, TdTomato, |
"X" Stand for a different plug :1-US Plug, 4-EURO Plug, 5-UK plug

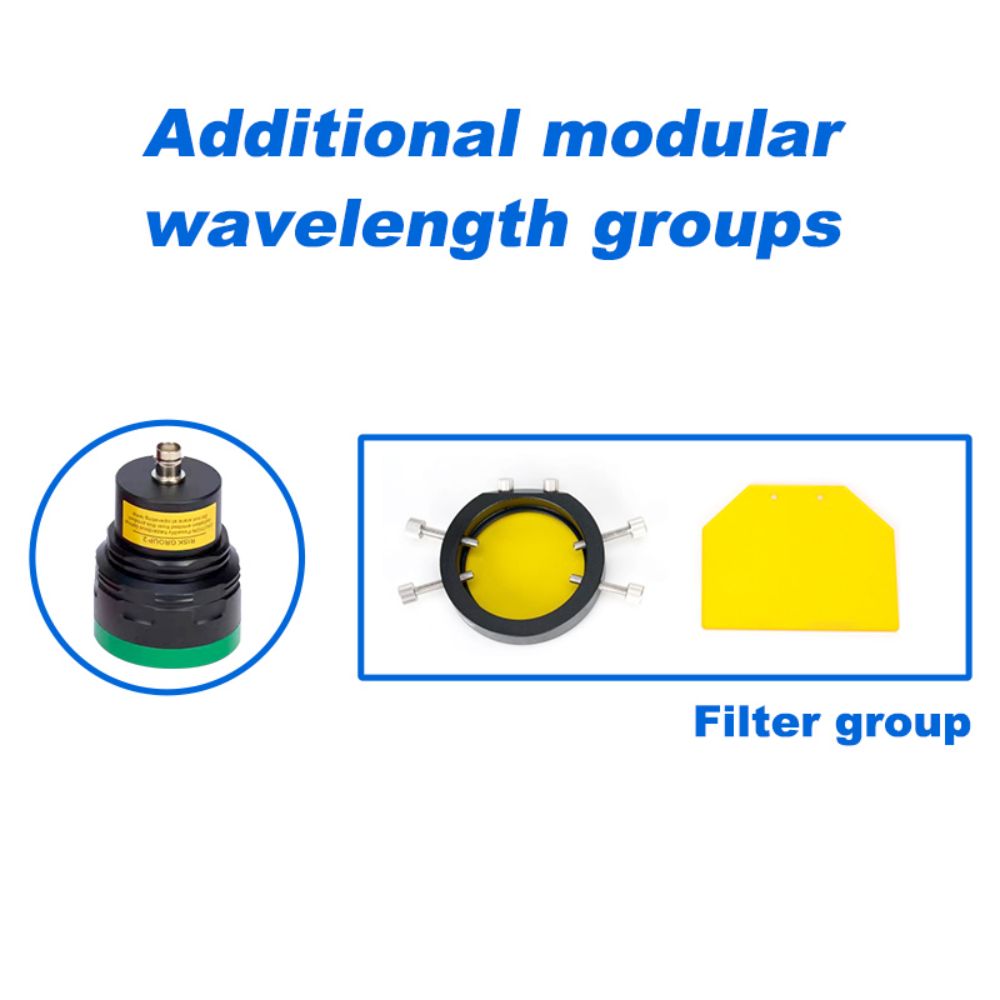

Additional modular wavelength groups
Model | Description |
DK-3000UV | Light head & Filter group-UV |
DK-3000RB | Light head & Filter group-Royal Blue |
DK-3000GR | Light head & Filter group-Green |
